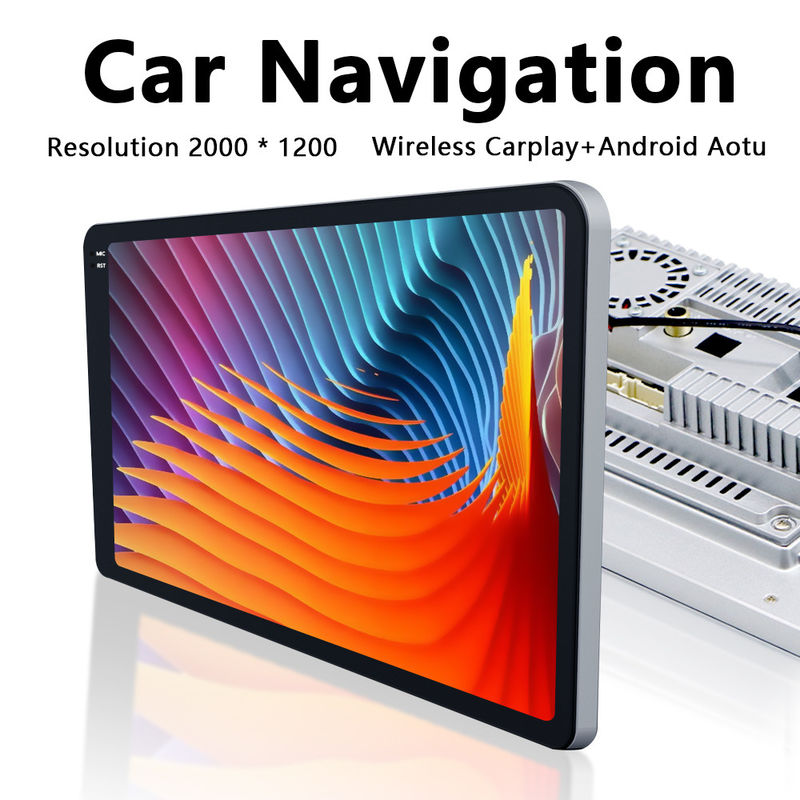

Android Car DVD GPS Navigation CarPlay Large Screen Central Control Integrated Machine

Car navigation universal machine suitable for Android large screenCentral control large screen Integrated reversCarPlay

1. Main control processor: Qualcomm QCM6125 8-core 64 bit ARM KryoTM 260 processor 2.4G main frequency (single core)

2.4G)

2. Memory LPDDR4 and EMMC FLASH configuration: 4G+64G/8G+128G

3. Embedded microprocessor: STM32F030C8T6

4. Software operating system: Android 11/12

5. Global network connectivity, supporting network frequency bands: supporting LTE Cat 6 and 2x20MHz carrier aggregation, with a maximum downlink rate of up to

300Mbps, supports GSM (2G), WCDMA (China Unicom 3G), TDD-LTE (4G), FDD-LTE (4G), CDMA2000 1X/EVDO

Rev. A (Telecom 3G) has a total of six modes.

6. Video input: 6-channel 1080P high-definition AHD video input simultaneously. They are 360 panoramic (four routes), 1 AR (ADS),

1-channel DSM facial recognition

7. Video output: DP output to the rear headrest, compatible with LVDS and MIPI screens, capable of supporting up to 1080P displays.

8. Built in 360 degree panoramic view: Qualcomm has the strongest GPU performance in the industry, achieving the best 3D panoramic effect

9. Audio input: One AUX audio input (vehicle standard requires 300mvrms~500mvrms)

10. Audio output: Using TDA7803 four sets of high-power speaker outputs (27W * 4); 6-way 4VRMS RCA audio (front

Left, front right, rear left, rear right, center, Subwoofer) output; 1 coaxial output and 1 fiber optic output.

11. Professional radio (Si47925) with multipath interference processing - - one level higher in noise suppression than NXP6686,

Built in RDS and RBDS processing

12. Sound effects: Authentic authorized DTS HiFi level digital sound effects, each with paid patent fees, 48 EQ segments, and multiple surround sound fields

Mode selection, Trubass, virtual center to achieve surround 5.1 effect, and adjust the surround space up and down.

13. Sound modification: Supports fiber optic and coaxial digital output, supports 5.1 channel output, and supports various requirements for sound modification.
